Belt Cleaner

Two - Way Tail Cleaner HTC02 - XXXX(I1X)

Type：Two - Way Tail Cleaner HTC02 - XXXX(I1X)Installed on the return side of the unloaded belt surface of the

    Detailed description
Type：Two - Way Tail Cleaner HTC02 - XXXX(I1X)

Installed on the return side of the unloaded belt surface of the two-way running conveyor belt, and with the action of the
tensioner, the blade pressing against surface of the return belt to clean up the materials on the belt, which improves the
off-tracking of the belt during operations. The cleaner will be mounted with a set of HTE1 tensioner.

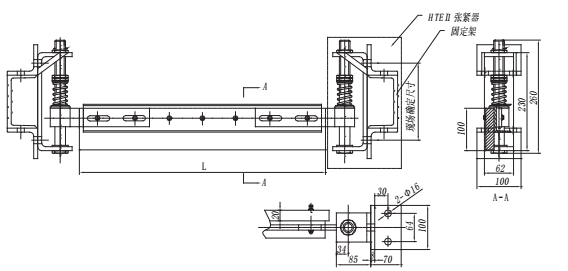

＞＞Product assembly Diagram



＞＞Product Specifications

Type Belt width L(mm) Weight
(mm) (kg)
HTC02-0650(I1X) 650 902 43
HTC02-0800(I1X) 800 1212 48
HTC02-1000(I1X) 1000 1494 53
HTC02-1200(I1X) 1200 1804 58
HTC02-1400(I1X) 1400 2086 63
HTC02-1600(I1X) 1600 2368 68
HTC02-1800(I1X) 1800 2678 73
HTC02-2000(I1X) 2000 2960 78
HTC02-2200(I1X) 2200 3270 83
