Belt Cleaner

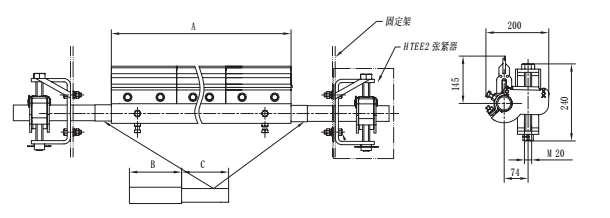

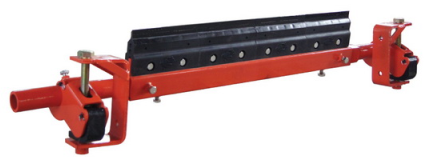

Type：Secondary CleanerHSC91-XXXX(E2X)＞＞Product assembly Diagram＞＞Product SpecificationsTypeBelt width(mm)Blade width A
| Type |
Belt width
(mm)
|
Blade width A
(mm)
|
Quantity of blade | Dimension of secondary frame (mm) |
Weight
(kg)
|
|
|
B Square tube
(50×50×5)
|
C circular tube
(Φ48×6)
|
|||||
| HSC91-0500(E2X) | 500 | 400 | 2 | 200 | 180 | 33 |
| HSC91-0650(E2X) | 650 | 600 | 3 | 300 | 260 | 37 |
| HSC91-0800(E2X) | 800 | 800 | 4 | 390 | 340 | 41 |
| HSC91-1000(E2X) | 1000 | 1000 | 5 | 390 | 340 | 45 |
| HSC91-1200(E2X) | 1200 | 1200 | 6 | 390 | 340 | 49 |
| HSC91-1400(E2X) | 1400 | 1400 | 7 | 390 | 340 | 53 |
| HSC91-1600(E2X) | 1600 | 1600 | 8 | 390 | 340 | 57 |
| HSC91-1800(E2X) | 1800 | 1800 | 9 | 390 | 340 | 61 |
| HSC91-2000(E2X) | 2000 | 2000 | 10 | 390 | 340 | 65 |
| HSC91-2200(E2X) | 2200 | 2200 | 11 | 390 | 340 | 79 |
|
Note：X in the bracket indicates the use occasion and attributes,“C”cold-resistant,“H”heat-resisting,
“U”anti- UV.“*”other additional data (if any)
|
||||||
