Belt Cleaner

HPC04-XXXX(W1X)

Type:HPC04-XXXX(W1X)CLEANERHeavy-duty cleaner: intergral blade, applicable to conveyor belt at speed of 3 m s or be

    Detailed description
Type:HPC04-XXXX(W1X)

Heavy-duty cleaner: intergral blade, applicable to conveyor belt at speed of 3 m/s or below and working in coordination with
HTEO or HTEM tensioner. There are heat-resistant, cold-resistant, and anti-UV series products for users to choose.

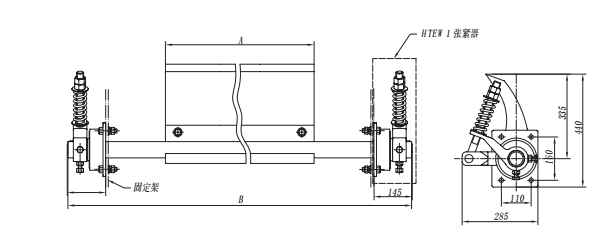

>>Product assembly Diagram


注:刀片压力0-300kg,弹簧每压缩5mm压力增加50kg压力。

>>Product Specifications

Type Belt width(mm)
Blade width A
(mm)
Blade width B
(mm)
Weight
(kg)
HPC04-0650(W1X) 650 640 1600 57
HPC04-0800(W1X) 800 790 1800 64
HPC04-1000(W1X) 1000 990 2000 72
HPC04-1200(W1X) 1200 1190 2000 80
HPC04-1400(W1X) 1400 1390 2200 88
HPC04-1600(W1X) 1600 1590 2400 96
HPC04-1800(W1X) 1800 1790 2780 101
HPC04-2000(W1X) 2000 1990 3000 112
HPC04-2200(W1X) 2200 2190 3200 120
Note:X in the bracket indicates the use occasion or attributes,“C”cold-resistant,“H”heat-resisting,
“U”anti- UV.“*”other additional data (if any)
