Belt Tracking System
上调偏托辊安装在带式输送机的承载段，布置于靠近头轮一侧以及导料槽出口处易产生跑偏的部位前面，HTS01型上调偏托辊适用于单向运转的带式输送机。

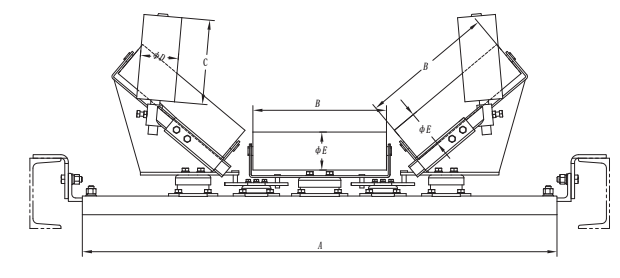

| 型号 | 皮带宽度(mm) | 尺寸E(mm) | 尺寸B(mm) | 尺寸D(mm) | 尺寸C(mm) | 产品重量（kg ) |
| HTS01-0650(Ⅱ) | 650 | 89 | 250 | 89 | 240 | 60 |
| HTS01-0800(Ⅱ) | 800 | 89 | 315 | 89 | 240 | 65 |
| HTS01-1000(Ⅱ) | 1000 | 108 | 380 | 89 | 240 | 75 |
| HTS01-1200(Ⅱ) | 1200 | 108 | 465 | 108 | 240 | 82 |
| HTS01-1400(Ⅱ) | 1400 | 133 | 530 | 108 | 340 | 94 |
| HTS01-1600(Ⅱ) | 1600 | 133 | 600 | 108 | 340 | 102 |
| HTS01-1800(Ⅱ) | 1800 | 133 | 660 | 133 | 340 | 110 |
| HTS01-2000(Ⅱ) | 2000 | 159 | 750 | 133 | 450 | 125 |
| HTS01-2200(Ⅱ) | 2200 | 159 | 810 | 133 | 450 | 135 |
| HTS01-2400(Ⅱ) | 2400 | 159 | 870 | 133 | 450 | 145 |
| 注：尺寸A需按实际工况测量后确定 | ||||||
